Level 2 AC charging infrastructure designed for fleet operations and commercial applications. Ranging from 32A to 80A in single and dual port configurations.

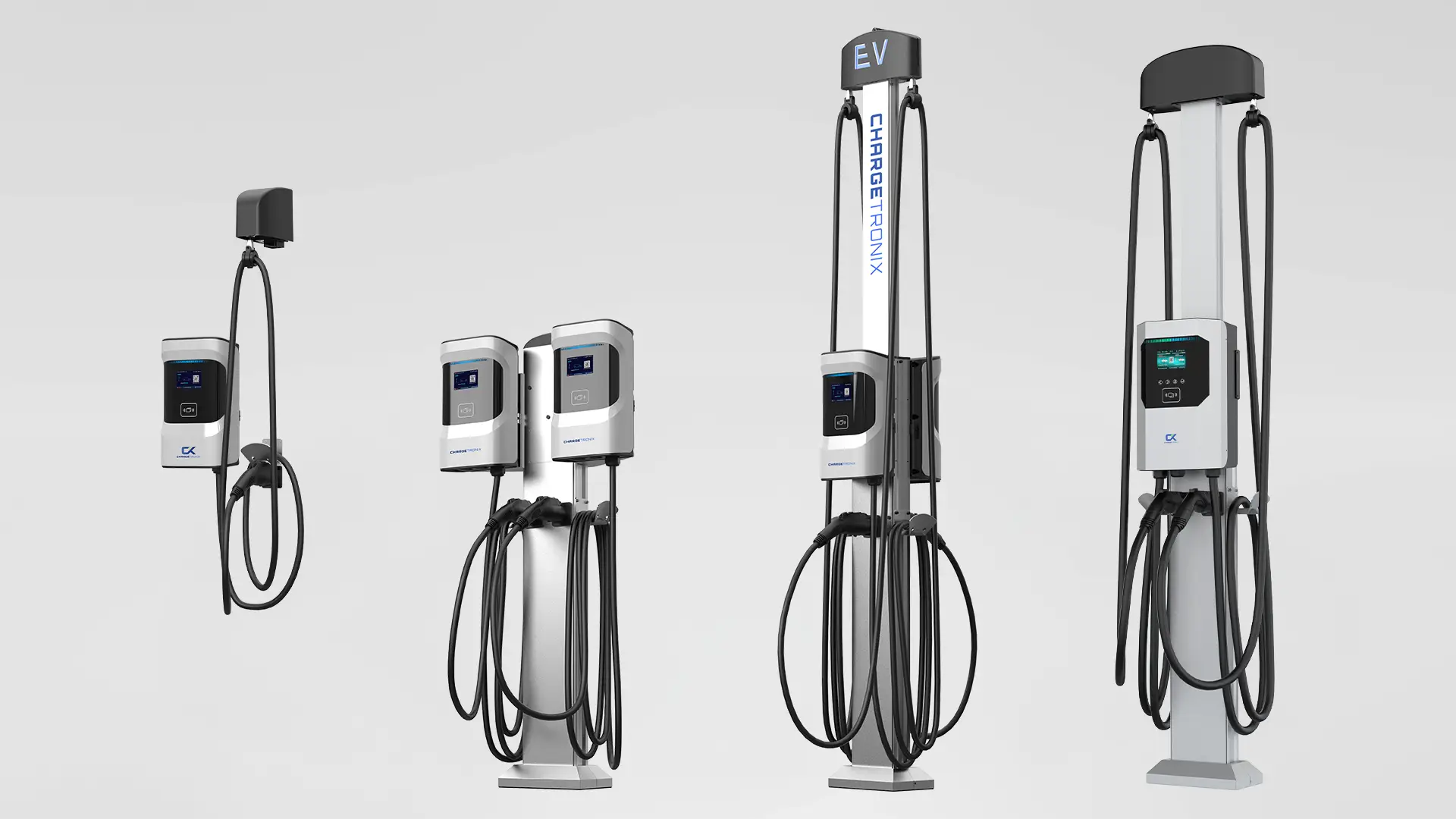

Seven configurations to match your charging infrastructure needs. The only difference between models is power output and port count — all share the same commercial-grade platform.
32A
7.7 kW
Our most popular configuration for commercial applications, balancing speed with infrastructure cost.
40A
9.6 kW
Higher power output for faster turnaround in medium-duty commercial environments.
48A
11.5 kW
High-performance single port charger engineered for demanding commercial use.
80A
19.2 kW
Maximum power Level 2 charger for the most demanding fleet and commercial applications.
32A Dual Port
15.4 kWDual-port with each port derated to 32A, optimized for installations with limited circuit capacity.
40A Dual Port
19.2 kWTwo independent 40A connectors charge two vehicles simultaneously from a single 80A circuit.
Every Flux AC charger is built with the reliability, safety, and connectivity that commercial operations demand.
Intelligent power distribution across multiple chargers to optimize energy usage.
Ground fault, over-current, and surge protection. UL Listed and Energy Star certified.
OCPP 1.6J compliant with Wi-Fi, Ethernet, and optional 4G LTE connectivity.
Safe operation from -30°C to 50°C ambient conditions.
Integrated metering and payment processing. CTEP/NTEP certified.
RFID authentication, mobile app access, and fleet management integration.
Every Flux AC charger shares the same commercial-grade platform. The only variable is amperage and port configuration.
Download user manuals and specification sheets for each Flux AC Charger model.
7.7 kW
9.6 kW
11.5 kW
19.2 kW
15.4 kW
19.2 kW
Complete installation guide for pedestal mounting
